RCV CBB-1

Versatile in use

Certified through:

  • EN ISO 13849

  • EN 60204-32

  • EN 62061

  • EN 62745

  • DNV

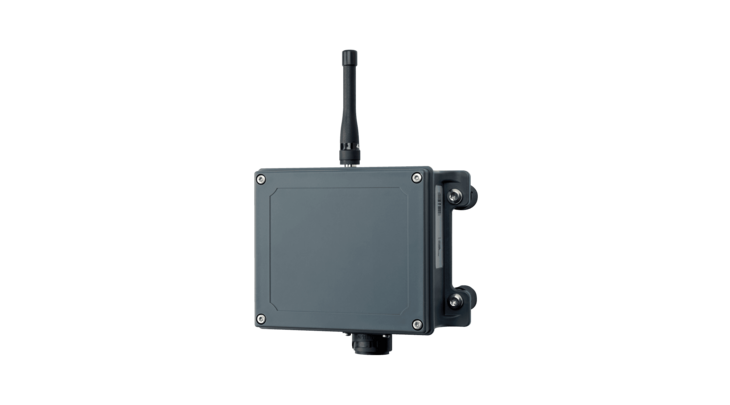

Photo of the receiver housing R3, highlighting its compact and robust design.

The RCV CBB-1 represents the latest generation of compact interface receivers from ARCON. This receiver offers a wide range of options, such as two separate CAN interfaces, data logging, fault diagnostics via CAN bus and optional cable control.

Technical data

PROTECTION CLASS IP 65
TEMPERATURE RANGE -20 to +70 °C
WEIGHT approx. 800 g
DIMENSIONS 165 x 115 x 65 mm (W/D/H)
FREQUENCY RANGE 432-481/863-930 MHz; 2.4 GHz
OPERATING VOLTAGE 8-36 VDC

Download

icon of two interconnected cog wheels
Mechanical engineering
icon of a large mobile crane
Construction machinery
icon of a tractor
Agricultural machinery and forestry
icon of a huge conveyor belt with two large boxes on it
Conveyor technology and intralogistics
icon of a port, showing a container ship and a huge crane loading a container onto it
Harbour and marine technology

Options

  • STOP Cat. 3 PLe / SIL3
  • CANopen
  • CANopen Safety
  • SAE J1939
