RCV BMS-2

Perfect for mobile machines

Certified through:

  • EN ISO 13849

  • EN 60204-32

  • EN 62061

  • EN 62745

  • DNV

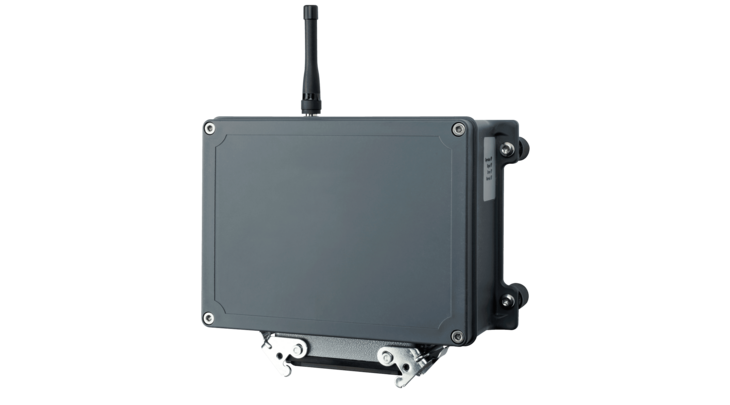

Photo of the receiver housing R5 construction, highlighting its robust build and protection for receiver modules in industrial applications.

The ARCON RCV BMS-2 receiver is primarily used in mobile machinery. With the option of controlling current and voltage-controlled hydraulic valves, it is the ideal companion for loading cranes, forestry cable winches or mobile screening systems. With the diagnostics window on the side, you always have the operating status in view. With the standard Quick-Set function, ARCON offers you an optimum feature for customised speed adjustment.

Technical data

PROTECTION CLASS IP 65
TEMPERATURE RANGE -25 to +70 °C
WEIGHT approx. 1800 g
DIMENSIONS 245 x 165 x 90 mm (W/D/H)
FREQUENCY RANGE 432-481/863-930 MHz; 2.4 GHz
OPERATING VOLTAGE 8-36 VDC

Download

icon of two interconnected cog wheels
Mechanical engineering
icon of a large mobile crane
Construction machinery
icon of a tractor
Agricultural machinery and forestry
icon of a huge conveyor belt with two large boxes on it
Conveyor technology and intralogistics
icon of a port, showing a container ship and a huge crane loading a container onto it
Harbour and marine technology

Options

  • STOP Cat. 3 PLe / SIL3
  • 8 analogue outputs (current or voltage) / 12 digital outputs (2 A / 36 VDC)
