RCV 14+/26+

Powerful and flexible

Certified through:

  • EN ISO 13849

  • EN 60204-32

  • EN 62061

  • EN 62745

  • DNV

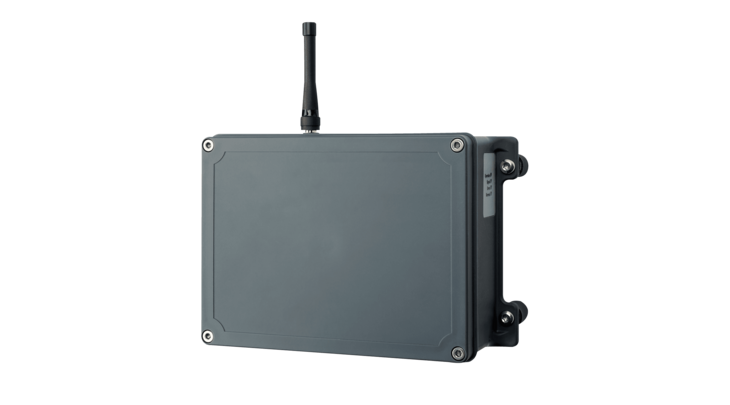

Photo of the receiver housing R5, highlighting its robust design and optimized construction for use in industrial remote control systems.

These receiver variants are installed in our tried-and-tested R5 housing. The two receivers with their 14 or 26 output relays offer maximum flexibility. The areas of application range from the construction industry to the automotive industry. The integrated screw terminal strip offers easy wiring options.

Technical data

PROTECTION CLASS IP 65
TEMPERATURE RANGE -20 to +50 °C
WEIGHT approx. 1800 g
DIMENSIONS 245 x 165 x 90 mm (W/D/H)
FREQUENCY RANGE 432-481/863-930 MHz; 2.4 GHz
OPERATING VOLTAGE 10 - 30 VDC, 48 VAC, 120 VAC, 240 VAC

Download

icon of two interconnected cog wheels
Mechanical engineering
icon of a large mobile crane
Construction machinery
icon of a tractor
Agricultural machinery and forestry
icon of a huge conveyor belt with two large boxes on it
Conveyor technology and intralogistics
icon of a port, showing a container ship and a huge crane loading a container onto it
Harbour and marine technology

Options

  • STOP Cat. 3 PLd / SIL3
  • 14 or 26 potential-free make contacts (4 A / 250 V)
