T7

High scope of performance

Certified through:

  • EN ISO 13849

  • EN 60204-32

  • EN 62061

  • EN 62745

  • DNV

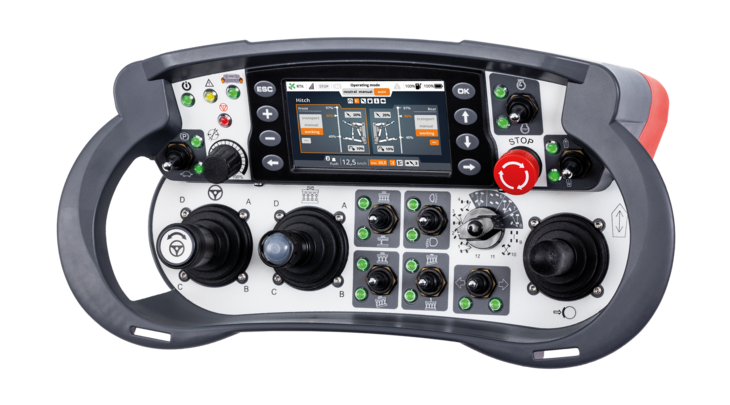

Photo of the T7 joystick device, highlighting its ergonomic design and controls for precise control applications.

The T7 transmitter is the largest transmitter within the T-Series. It offers you the maximum number of options for positioning your control elements. On customer request, a colour graphic display of up to 4.3“ with optional video feedback can be installed. As a result, you not only have the status, but also the working area of your machine under control at all times.

Technical data

PROTECTION CLASS IP 65
TEMPERATURE RANGE -20 to +60 °C
WEIGHT approx. 2000 g
DIMENSIONS 370 x 185 x 170 mm (W/D/H)
FREQUENCY RANGE 432-481/863-930 MHz; 2.4 GHz
BATTERY TECHNOLOGY Exchangeable battery, NiMH or Li-Ion
OPERATING TIME up to 20 hours
OPERATING RANGE > 100 m

Download

icon of two interconnected cog wheels
Mechanical engineering
icon of a large mobile crane
Construction machinery
icon of a tractor
Agricultural machinery and forestry
icon of a huge conveyor belt with two large boxes on it
Conveyor technology and intralogistics
icon of a port, showing a container ship and a huge crane loading a container onto it
Harbour and marine technology

Options

  • STOP Cat. 3 PLe / SIL3
  • Safe digital control functions up to Cat. 3 PLe / SIL3
  • Safe analogue control functions up to Cat. 3 PLe / SIL3
  • 3.5“ or 4.3“ colour graphic display freely programmable via QT
  • Graphic display 2.1”
  • Graphic display 2.8”
  • LED feedback
  • Video transmission from up to 4 cameras in real time
  • Video transmission with picture-in-picture function
  • Brightness sensor
  • Tilt sensor
  • Presence sensor
  • Vibration alarm
  • Control panel lighting
  • Cable control with optional charging function
  • CAN cable control
  • Multi-operation
  • User-defined switch-off time
  • Customised labelling
  • Bottom housing available in red, blue or grey
  • Shoulder hook
  • Shoulder cross belt
  • Belly belt
  • Neck belt

Versatile transmitter design for complex applications

The T7 transmitter is a sophisticated control solution designed for demanding applications in various fields of use. Its sophisticated design makes it ideal for use in challenging environments where precise control and high resilience are required. With the option of equipping the device with different joysticks, buttons and switches, the T7 transmitter offers flexible customisation to meet the individual needs of users.

Optional extensions for increased user-friendliness

For further optimisation, the T7 transmitter can be equipped with an optional, high-resolution colour graphic display. This display provides a clear and intuitive presentation of all important information and helps the user to quickly understand the current operating conditions. In addition, video transmission from up to four cameras is possible in real time, providing users with comprehensive visual feedback during operation.

Individual customisation options for maximum efficiency

As with all our devices, the T7 transmitter is customised according to the customer's requirements in order to jointly develop the best possible configuration. This versatility makes it possible to tailor the device precisely to different applications where performance, safety and user-friendly operation take centre stage.
