T6

Extremely flexible

Certified through:

  • EN ISO 13849

  • EN 60204-32

  • EN 62061

  • EN 62745

  • DNV

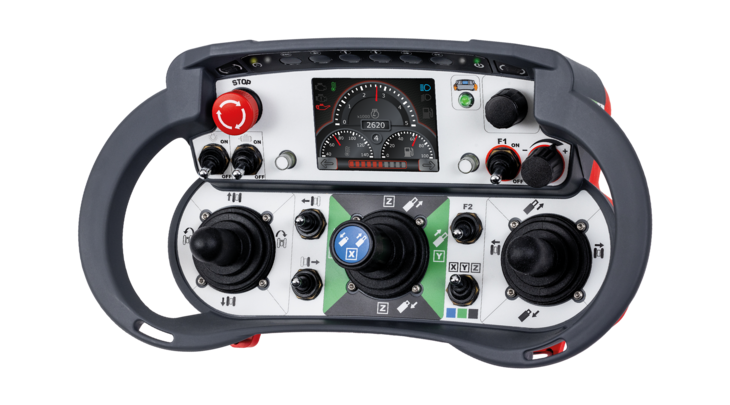

Photo of the T6 joystick device, highlighting its compact design and controls for versatile control applications.

The T6 transmitter is the perfect companion for demanding environments. Its robust housing offers space for up to 4 joysticks or 8 linear joysticks. The versatile transmitter can be customised with toggle switches, rotary switches, potentiometers and much more. The innovative displays from the GDM and GDC series can also be accommodated in this housing variant.

Technical data

PROTECTION CLASS IP 65
TEMPERATURE RANGE -20 to +60 °C
WEIGHT approx. 1900 g
DIMENSIONS 325 x 180 x 165 mm (W/D/H)
FREQUENCY RANGE 432-481/863-930 MHz; 2.4 GHz
BATTERY TECHNOLOGY Exchangeable battery, NiMH or Li-Ion
OPERATING TIME up to 20 hours
OPERATING RANGE > 100 m

Download

icon of two interconnected cog wheels
Mechanical engineering
icon of a large mobile crane
Construction machinery
icon of a tractor
Agricultural machinery and forestry
icon of a huge conveyor belt with two large boxes on it
Conveyor technology and intralogistics
icon of a port, showing a container ship and a huge crane loading a container onto it
Harbour and marine technology

Options

  • STOP Cat. 3 PLe / SIL3
  • Safe digital control functions up to Cat. 3 PLe / SIL3
  • Safe analogue control functions up to Cat. 3 PLe / SIL3
  • 3.5“ colour graphic display freely programmable via QT
  • Graphic display 2.1“
  • Graphic display 2.8“
  • LED feedback
  • Video transmission from up to 4 cameras in real time
  • Brightness sensor
  • Tilt sensor
  • Presence sensor
  • Vibration alarm
  • Control panel lighting
  • Cable control with optional charging function
  • CAN cable control
  • Multi-operation
  • User-defined switch-off time
  • Customised labelling
  • Bottom housing available in red, blue or grey
  • Shoulder hook
  • Shoulder cross belt
  • Belly belt
  • Neck belt

Robust solution for demanding applications

The T6 transmitter provides users with a reliable and robust control solution that has been specifically designed for challenging work environments. The robust design makes this model ideal for applications where accuracy and durability are of crucial importance. Thanks to the flexible configuration with joysticks, buttons and switches, the control system can be customised to meet a wide range of customer requirements.

Extended options and customisable configuration

As an option, the T6 transmitter can be equipped with a high-resolution colour graphic display, which ensures a clear and concise presentation of all relevant information. This function facilitates operation and increases safety, as the user always has the most important operating data in view. The integration of up to four cameras also enables video transmission, providing users with comprehensive visual feedback during operation. Furthermore, the device has an extremely robust design and can withstand shocks, vibrations and adverse weather conditions, making it an ideal choice for demanding applications.

Customised solutions for maximum flexibility

Like all ARCON products, the T6 transmitter is individually configured to perfectly fulfil specific requirements. This adaptability means that the device offers a customised and customer-specific solution for various applications where reliability, precision and user-friendly operation are paramount.
