T5

Compact all-rounder

TESTED ACCORDING TO

  • EN ISO 13849
  • EN 60204-32
  • EN 62061
  • EN 62745
  • DNV

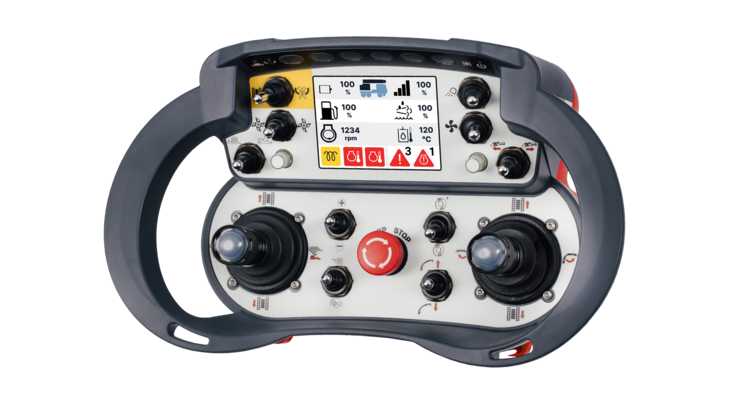

Photo of the T5 joystick device, highlighting its robust design and controls for precise control applications.©

Thanks to its balanced proportions, the T5 transmitter can be equipped with a variety of operating elements and information sources. The freely programmable GDC-3.5 colour graphic display can easily be integrated.

Technical data

PROTECTION CLASS IP 65
TEMPERATURE RANGE -20 to +60 °C
WEIGHT approx. 1800 g
DIMENSIONS 290 x 180 x 155 mm (W/D/H)
FREQUENCY RANGE 432-481/863-930 MHz; 2.4 GHz
BATTERY TECHNOLOGY exchangeable, NiMH or Li-Ion
OPERATING TIME up to 20 hours
OPERATING RANGE > 100 m

Download

icon of two interconnected cog wheels
Mechanical engineering
icon of a large mobile crane
Construction machinery
icon of a tractor
Agricultural machinery and forestry
icon of a huge conveyor belt with two large boxes on it
Conveyor technology and intralogistics
icon of a port, showing a container ship and a huge crane loading a container onto it
Harbour and marine technology

Options

  • STOP Cat. 3 PLe / SIL3
  • Safe digital control functions up to Cat. 3 PLe / SIL3
  • Safe analogue control functions up to Cat. 3 PLe / SIL3
  • LED feedback
  • 2.1“ graphic display
  • 2.8“ graphic display
  • 3.5“ colour graphic display, freely programmable via Qt
  • Keypad with 6 soft keys and 4 LEDs (RG)
  • Video transmission from up to 4 cameras in real time
  • Brightness sensor
  • Tilt sensor
  • Presence sensor
  • Vibration alarm
  • Control panel lighting
  • Cable control with optional charging function
  • CAN cable control
  • Multi-operation
  • User-defined switch-off time
  • Customised labelling
  • Bottom housing available in red, blue or grey
  • Shoulder hook
  • Shoulder cross belt
  • Belly belt
  • Neck belt

Compact and powerful control solution

Our T5 transmitter is a powerful and flexible control solution that has been specially developed for demanding applications. With its compact and robust housing, it is ideal for use in a wide range of applications where precision and reliability are crucial. Thanks to the intuitive arrangement of the operating elements, the transmitter enables convenient and efficient control, even under difficult conditions. The compact design offers sufficient space for customised switches, buttons and joysticks, so that the T5 transmitter can be adapted to the specific requirements of any application.

Clear display and high resistance

As an option, this transmitter design can be equipped with a modern colour graphic display that shows all important operating information clearly and concisely. This additional function not only makes operation easier, but also increases safety, as the operator always has an overview of the current processes. Furthermore, the simultaneous transmission of up to four cameras enables users to receive comprehensive visual feedback during operation. Thanks to its robust design, the T5 transmitter is also resistant to shocks, vibrations and extreme environmental conditions, making it a reliable companion in demanding work environments.

Individual configuration for customised solutions

The T5 transmitter is individually configured according to customer requirements. This way we ensure that each control solution is perfectly matched to the respective application. With its modern technology and proven reliability, it offers an ideal solution for anyone looking for a powerful and versatile remote control.
